Get the perfect balance between productivity and usability, without compromising on safety. The RI20 is designed around the user on the floor and eliminates a complicated setup.

Simply in control

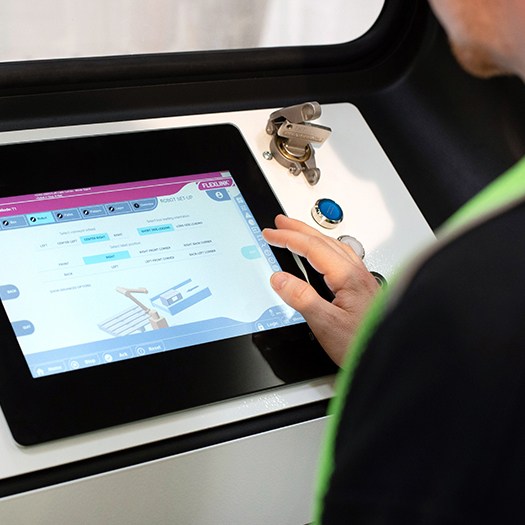

The RI20 control system focuses on usability and intuitiveness. The operator is in full control of the palletizer – for straightforward, easy installation and configuration. The drag and drop pallet manager also allows the operator to change and configure new pallet patterns in minutes.

Simply in control

The RI20 control system focuses on usability and intuitiveness. The operator is in full control of the palletizer – for straightforward, easy installation and configuration. The drag and drop pallet manager also allows the operator to change and configure new pallet patterns in minutes.

Simply flexible

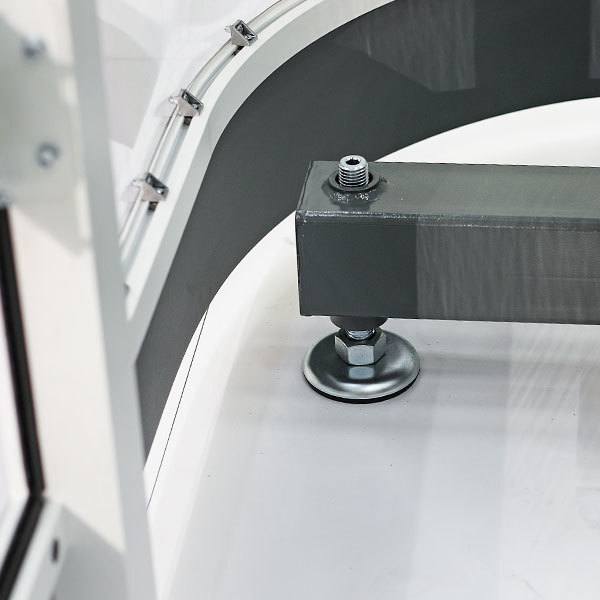

Thanks to a non-bolted installation, the RI20 meets the growing demand for flexibility in production. With its compact and modular design, a quick move can be made within a production facility for seasonal production changes or customized batches.

Simply flexible

Thanks to a non-bolted installation, the RI20 meets the growing demand for flexibility in production. With its compact and modular design, a quick move can be made within a production facility for seasonal production changes or customized batches.

Simply continuous

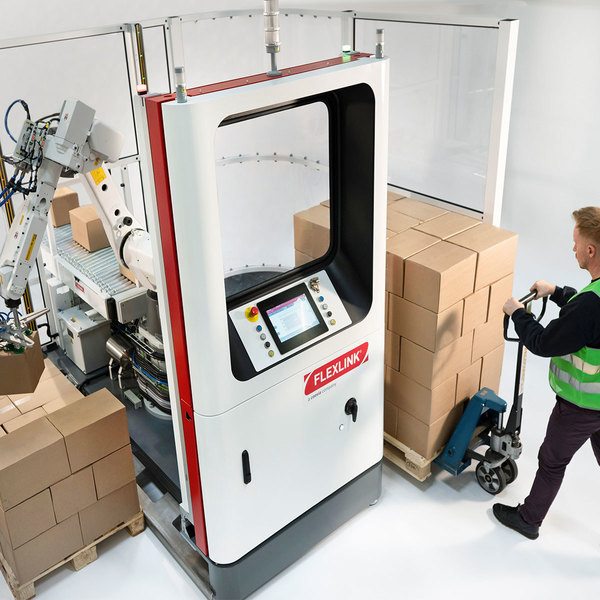

Designed for seamless operations, thanks to an advanced safety system and two pallet positions. The safety scanners and light curtains adapt palletizing speed when the operator is near, eliminating any risk of contact. As a result, the operator can exchange a full pallet without stopping the palletizing process.

Simply continuous

Designed for seamless operations, thanks to an advanced safety system and two pallet positions. The safety scanners and light curtains adapt palletizing speed when the operator is near, eliminating any risk of contact. As a result, the operator can exchange a full pallet without stopping the palletizing process.

Technical details

• Payload, up to 15 kg
• Capacity, up to 12 cycles per minute
• Item size, closed box (W×L×H) from 140×200×10 mm to 480×600×480 mm
• Pallet sizes: EUR, INDU, US, JPN and AUS

• Pallet height, up to 2.2 m (depending on pallet size)
• Footprint, 3.9/4.3×4.1 m including infeed (depending on pallet size)

• Robot arm KUKA KR20 R1810 Cybertech or FANUC M-20iA/35M

Technical details

• Payload, up to 15 kg
• Capacity, up to 12 cycles per minute
• Item size, closed box (W×L×H) from 140×200×10 mm to 480×600×480 mm
• Pallet sizes: EUR, INDU, US, JPN and AUS
• Pallet height, up to 2.2 m (depending on pallet size)
• Footprint, 3.9/4.3×4.1 m including infeed (depending on pallet size)
• Robot arm KUKA KR20 R1810 Cybertech or FANUC M-20iA/35M
